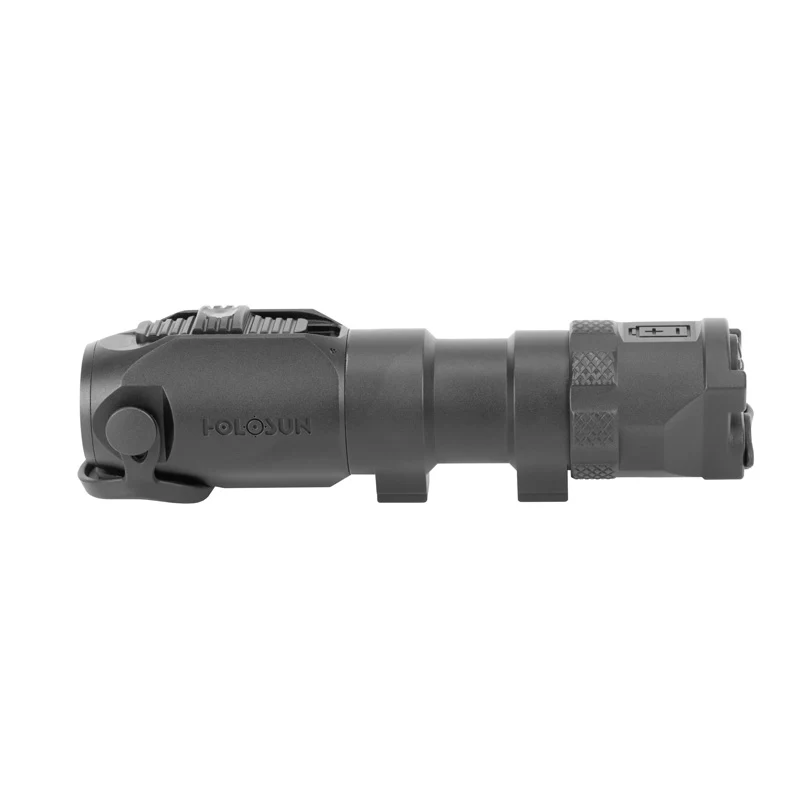

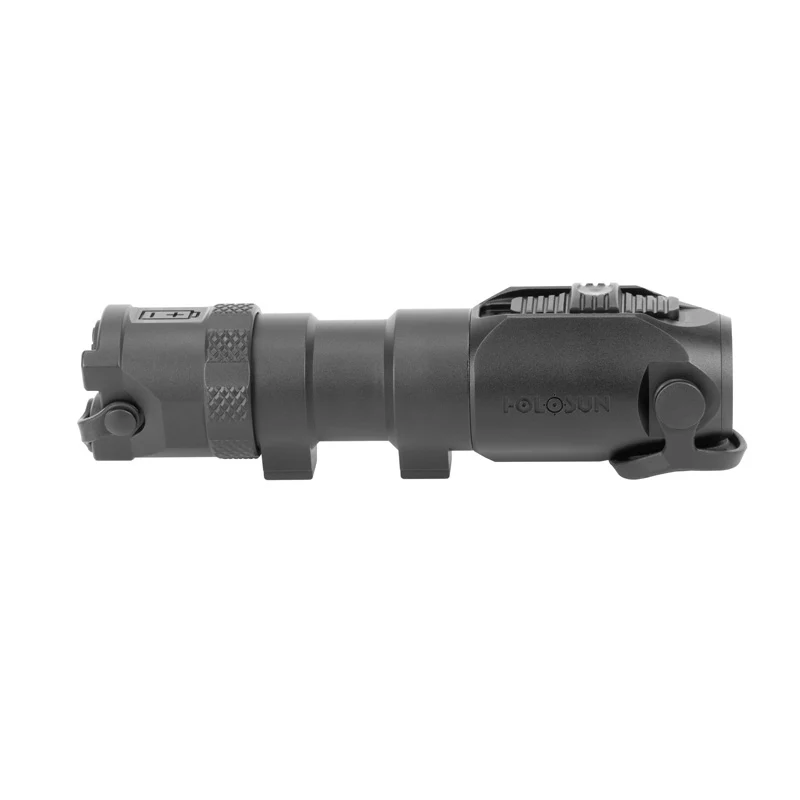

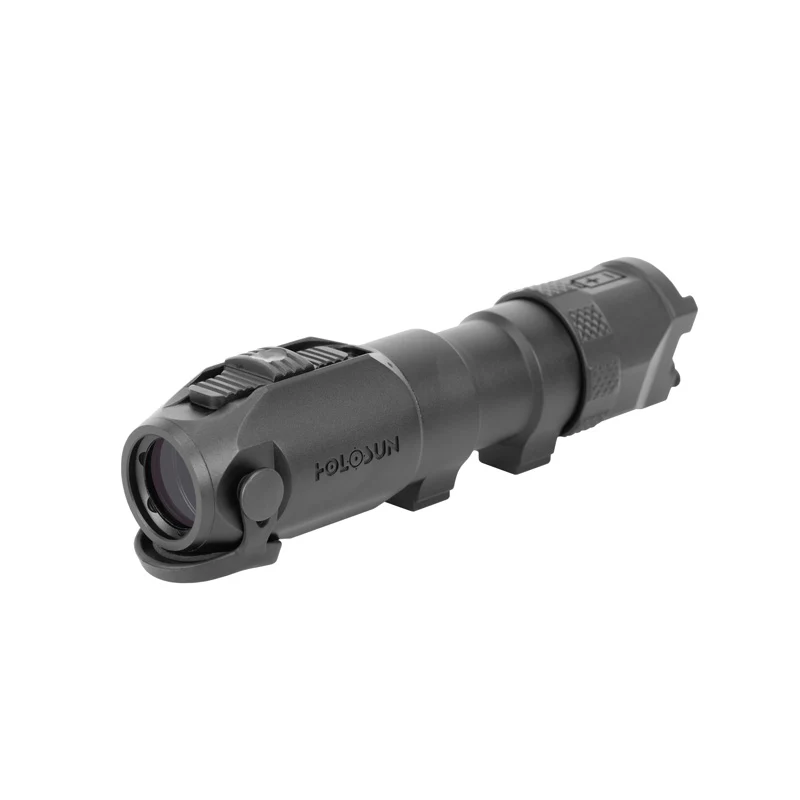

Holosun IRIS-ARC VCSEL IR Illuminator - Adjustable Spot to Flood Switch & Pressure Pad
The Holosun IRIS-ARC is a dedicated infrared illuminator engineered for serious night-vision use, delivering controlled, high-output IR light from close-quarters environments to extended observation distances. Built around a powerful IR VCSEL emitter, the IRIS-ARC produces a clean, uniform beam optimized for modern night-vision devices.
A defining feature of the IRIS-ARC is its top-mounted beam adjustment slider, allowing users to rapidly transition from a tight 3° long-range spot to a wide 40° flood. This intuitive adjustment makes it easy to adapt illumination on the fly without changing grip or breaking focus, whether navigating indoors or illuminating distant terrain.
Constructed from rugged 7075-T6 aluminum, the IRIS-ARC is built to withstand harsh operational environments. An IPX8 submersion rating and reinforced internal components ensure dependable performance in wet, dusty, and high-impact conditions. The compact housing keeps weight low while maintaining durability under recoil and hard use.
The IRIS-ARC offers flexible activation options, including a rear push-button and an included Crane-plug single-button remote pressure pad. A standard Scout-pattern mounting interface allows compatibility with a wide range of aftermarket mounts, making integration simple across various rifle platforms.
Purpose-built, efficient, and highly adaptable, the Holosun IRIS-ARC delivers precise IR illumination control for night-vision professionals operating across varying distances and mission requirements.
Key Features
- Dedicated IR illuminator optimized for night-vision devices
- Adjustable beam transitions from 3° spot to 40° flood
- High-output IR VCSEL for clean, consistent illumination
- Top-mounted slider for rapid beam adjustment
- Standard Scout-pattern mount compatibility
- Includes Crane-plug single-button remote pressure pad
Optical & IR Specifications
- IR Output Power: 20–260 mW (adjustable across beam range)
- IR Wavelength: 820–880 nm
- IR Class: Class 3R
- Beam Adjustment: 3° to 40° via top slider
Electronic Specifications
- Battery Type: 1 × CR123A
Mechanical Specifications
- Housing Material: 7075-T6 aluminum
- Finish: Hard anodized
- Color: Black
- Waterproof Rating: IPX8
- Vibration Resistance: 10,000G
- Operating Temperature: -30°C to 51°C
- Storage Temperature: -40°C to 70°C
Physical Dimensions
- Dimensions: 4.53 × 1.14 × 1.3 in
- Weight: 4.1 oz
